Component Specification

Heat Exchangers

E-1 Exchanger

• Heat Exchange: Coolant to water

• Size: 2-1/2" diameter x 96"

• Construction: Tube & shell (u-bend)

• Material: Stainless steel

• PSI Range: 3000 psi operating, tested to 4500 psi

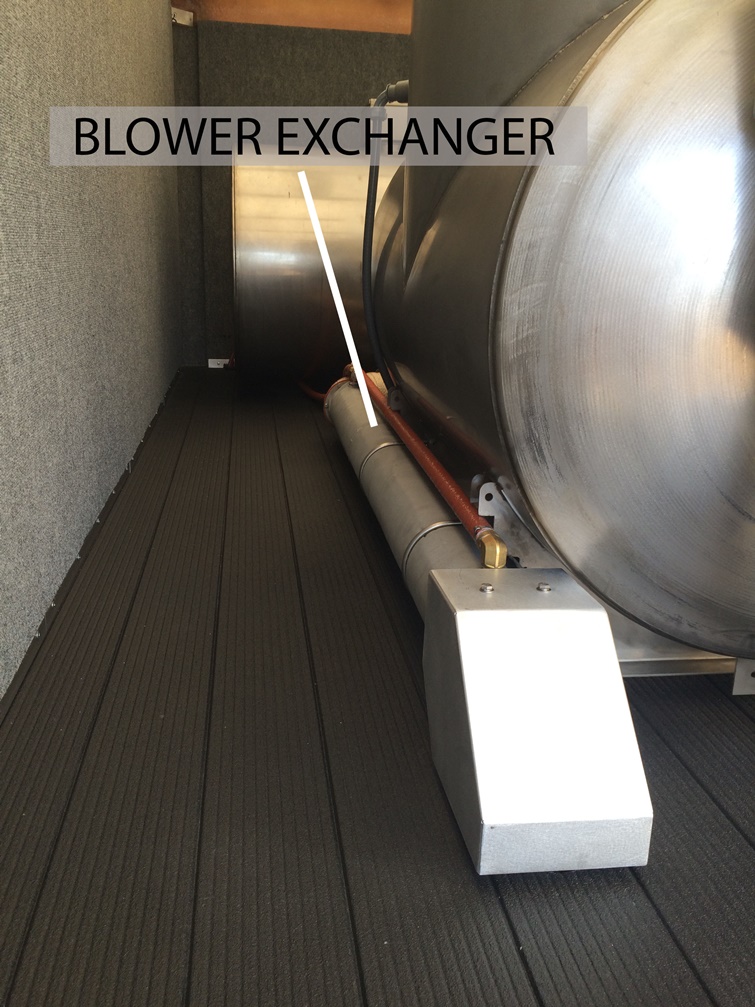

Blower Exchanger

• Heat Exchange: Blower Exhaust to water

• Size: 4.75" diameter x 48" long

• Construction: Tube & shell

• Material: Stainless steel

• PSI Range: 1600 psi operating, tested to 2400 psi

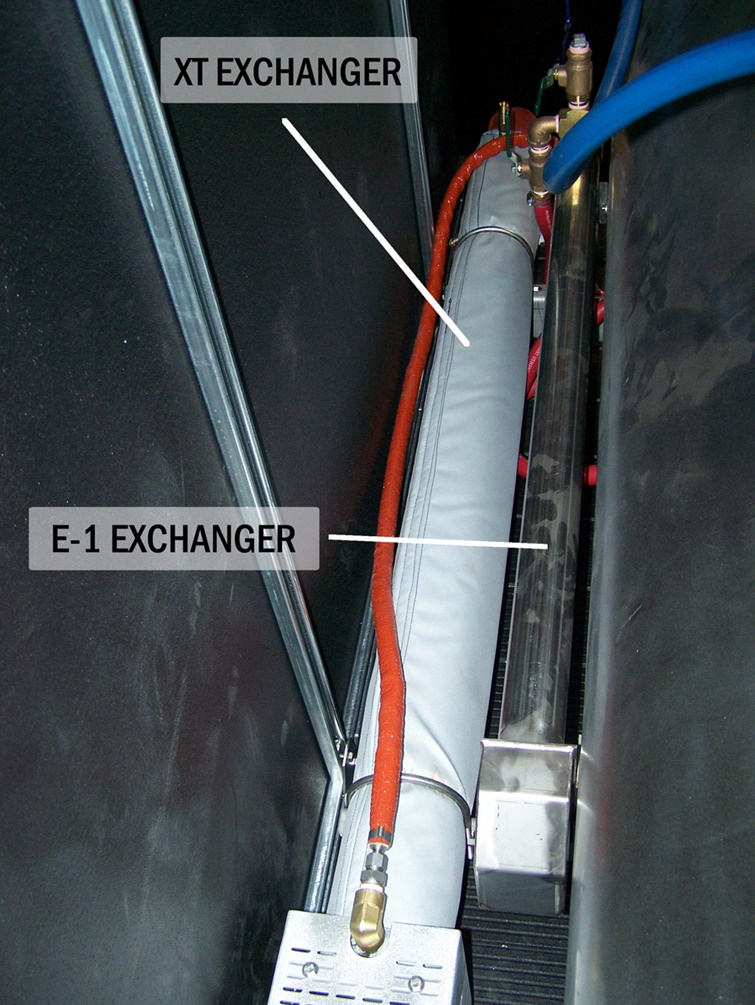

Xt Exchanger

• Heat Exchange: Host Vehicle Exhaust to water

• Size: 4" diameter x 60" long

• Construction: Tube & shell

• Material: Stainless steel

• PSI Range: 1600 psi operating, tested to 2400 psi
