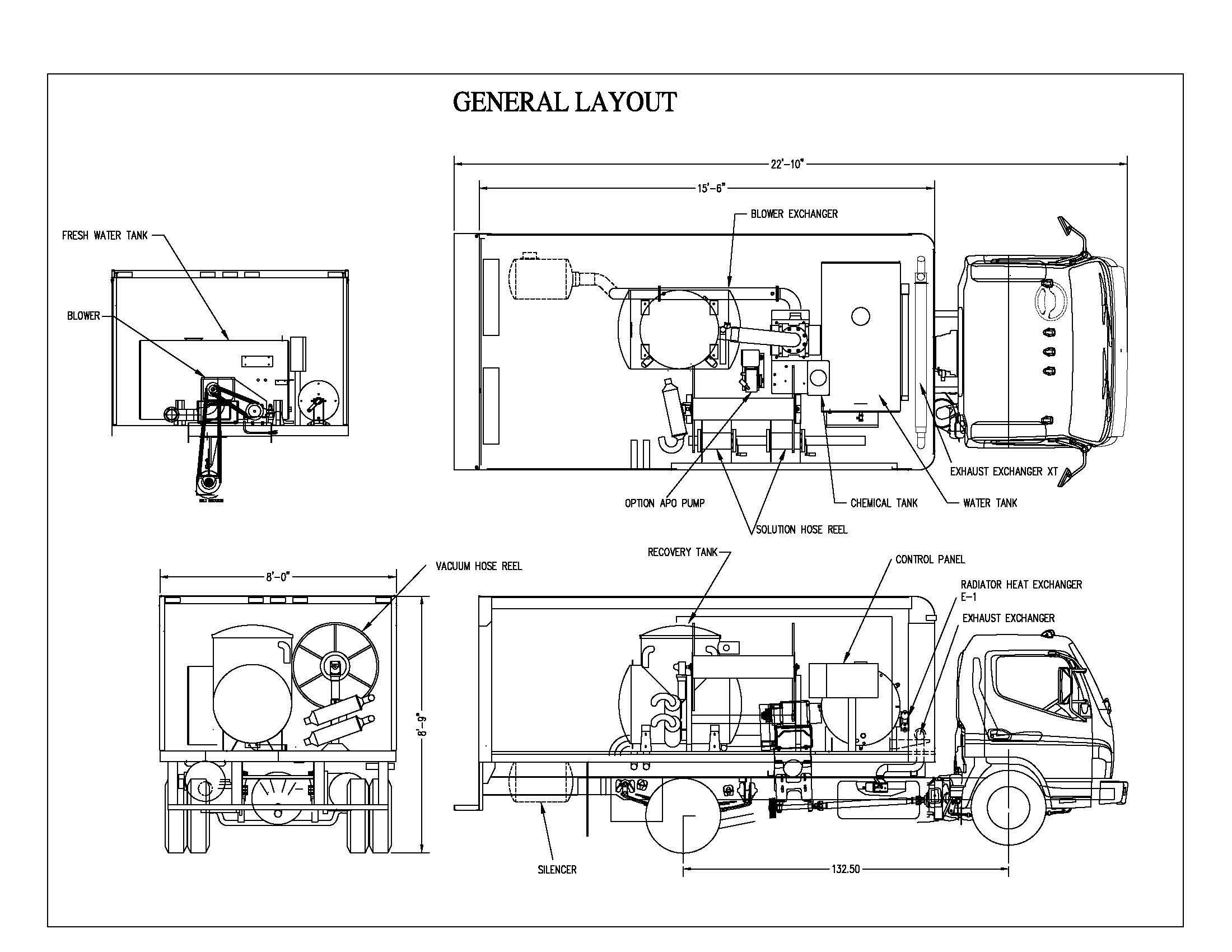

Truck Layout

Watch a Video Demo

Carpet Cleaning Truck Mount Contact Form

* Denotes required field.  Information must be filled out for form to be submitted

What makes the XT cleaning truck mount far superior to its competition?

We call it the XT Advantage. No other carpet & tile system can offer this long list of must haves:

  • CRI Gold Level certified, meeting 2008 carpet manufacturer warranty requirements.

  • Latest in heat management technology

  • Operating temperature in 7 - 10 minutes!

  • Reduced maintenance costs and downtime.

  • A more environmentally friendly system.

  • No external power or heat source. One engine to maintain PTO system.

  • True dual wand system. Can be used as 3 wand, 660 icfm @ 16" hg and maximum cleaning speed (engine rpm's) of 1550 rpm

  • 290 cubic feet of storage space.

  • 190 square feet of advertising space.

  • More airflow and Deeper vacuum allows for faster drying times.

  • Technical support by the experts that design, manufacture and assemble the cleaning equipment.

  • In-house design, fabrication and assembly

  • Exchangers designed and tested to ASME and TEMA standards

  • Reliable, durable and easy to operate and service.

  • Competitive price, sold manufacturer direct

  • Saving you money

Standard Equipment - XT Package:

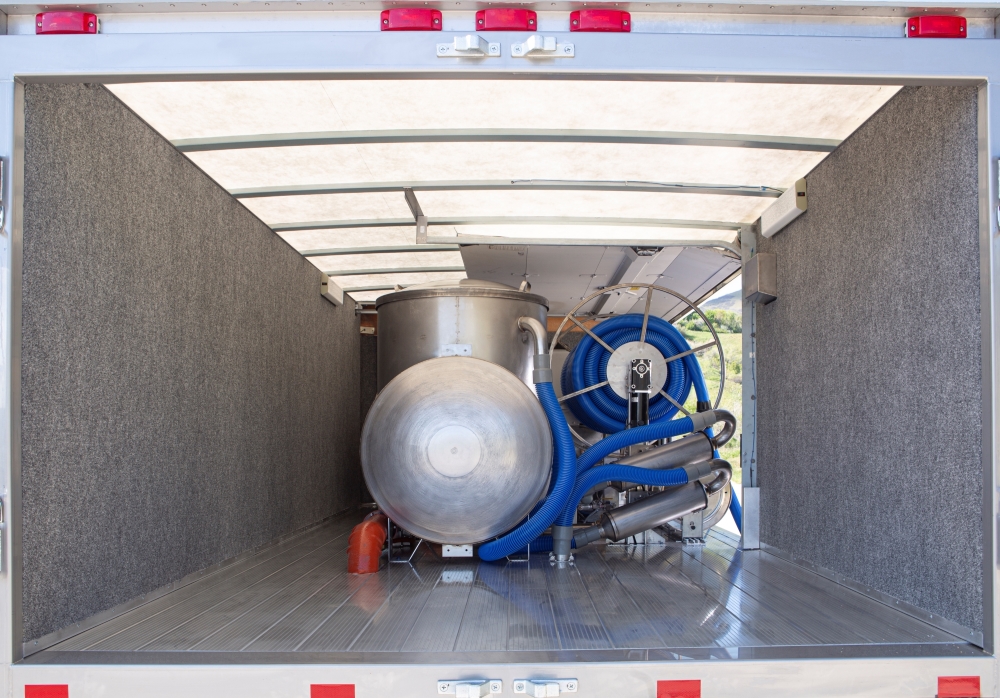

Box

  • 8ft wide X 15' 6" Long X 62" interior height

  • Rear swing doors

  • Garage style side roll up door

  • FRP (fiberglass reinforced plywood) side walls (smooth, no screws or seams)

  • 6" aluminum extruded floor

  • (3) 18" fluorescent interior lights

  • Translucent fiberglass roof

Tanks

  • 156 gallon fresh water tank (standard on NPR-HD)

  • 183 gallon fresh water tank (Standard on NPR-XD & NQR)

  • Includes 8 sq ft shelve mounted on top of the tank

  • New 155 gallon recovery tank

  • 7 gallon chemical tank

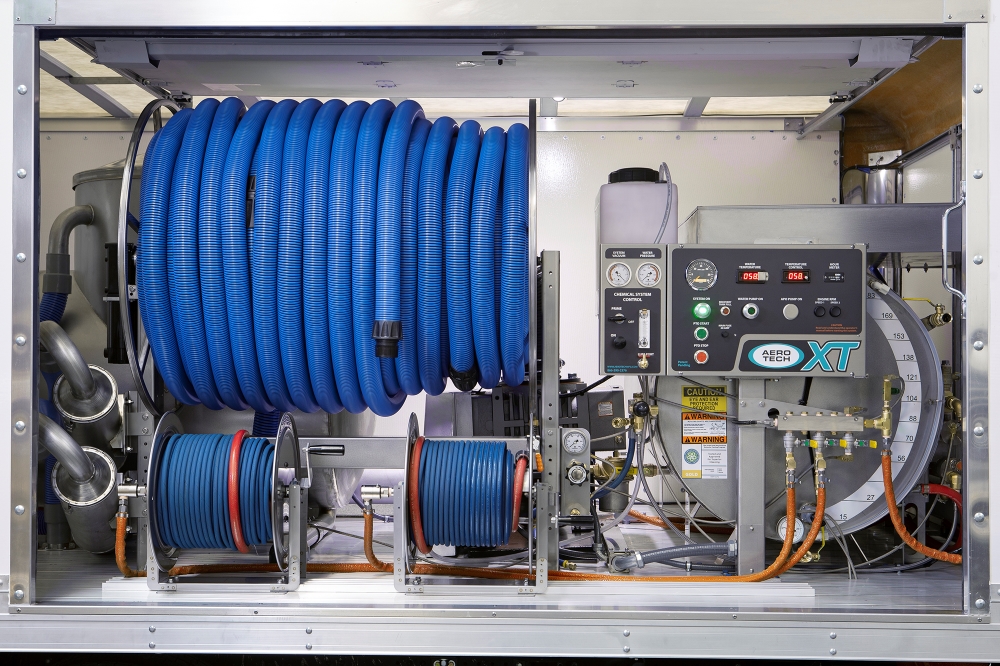

Blower / Pump's

  • New helical tri-lobe, dual splash lubrication vacuum blower with upgraded oil level indicators and drain kits

  • 1600 psi, 6 GPM Cat Water Pump

  • Chemical injection,

    • Pulse actuated diaphragm pump (rated up to 1500 psi)

    • On/off shutoff valve between chemical pump and water pump

Hose Reels

  • Electric vacuum hose reel (400ft capacity of 2" hose, 300 ft capacity of 2.5" hose)

  • (2) 12" solution hose reels ( 400ft capacity of 1/4" solution hose)

Hoses

  • 100ft X 2.5" vacuum hose

  • 100ft X 2" vacuum hose

  • Flash Cuff connections (cool cuffs also available)

  • (2) 100ft X 1/4" 300°F solution hose with shutoff valves & safety sleeves

System Inlet Connections

  • (2) 2.5" vacuum inlet ports

  • (2) high temperature / pressure, chemical injected solution connections

  • (1) low temperature, non-chemical injected solution connection (170°F maximum temperature, ideal for pre-spraying or cleaning wool at a lower temperature while simultaneously cleaning carpet at a higher temperature)

Filtering Systems

  • (3) internal recovery tank filters

  • (2) external lint traps

Standard Equipment - Chassis:

In addition to the standard features that are included with the Isuzu chassis, we also add the following options to every chassis:

  • Engine block heater

  • Dome light switch

  • Engine protection (automatic shutdown)

  • Back up alarm

  • Heated mirrors

  • Road hazard kit (fire extinguisher & reflective triangles)

Click Here to learn more about the Isuzu Chassis
